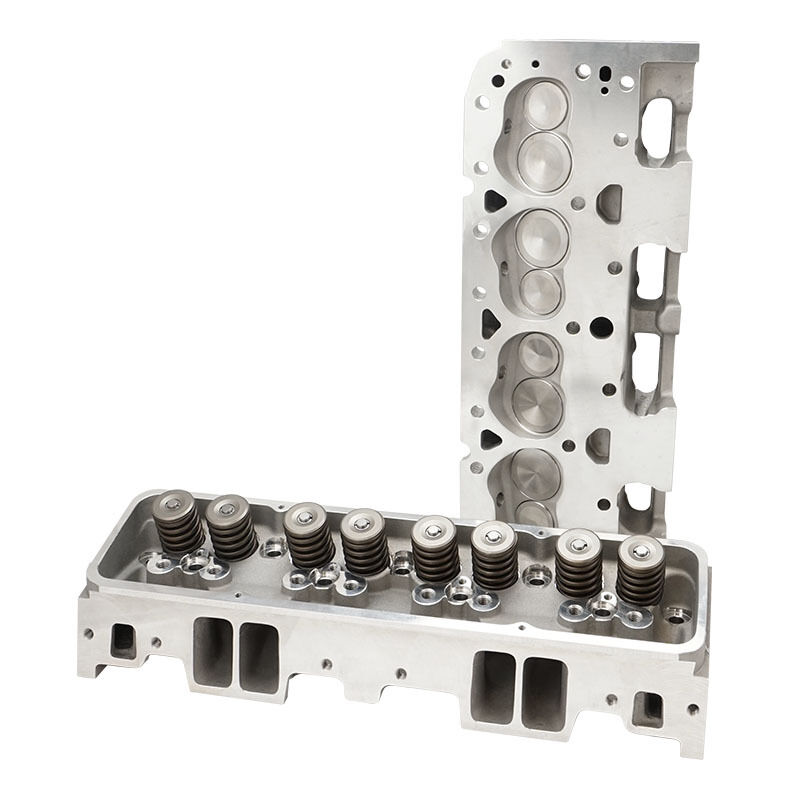

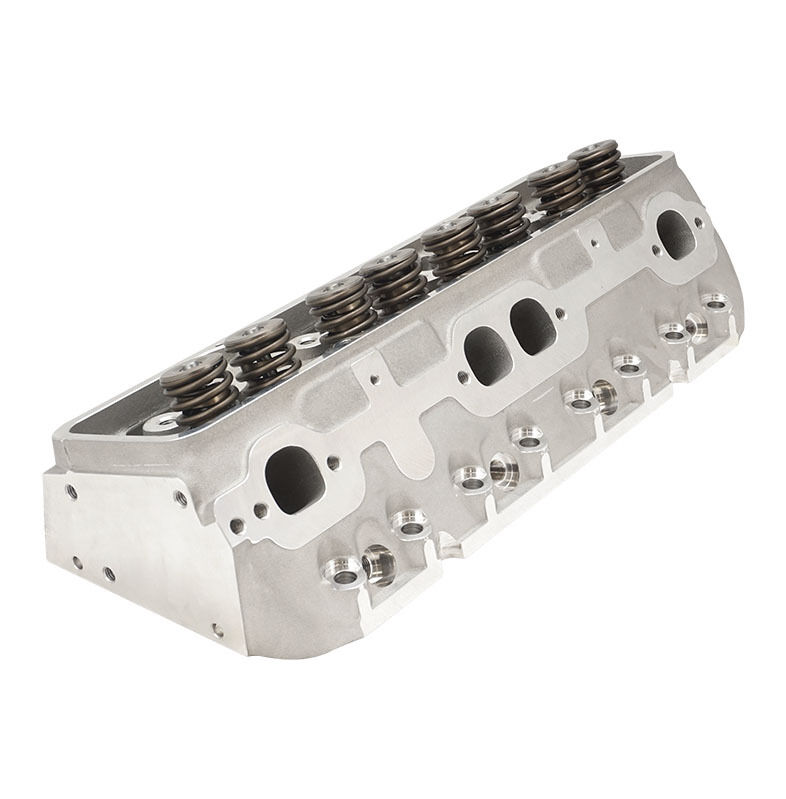

Proflow Cylinder Heads, AirMax 200,SB Chev Aluminium, Assembled, 64cc Chamber

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Specifications & Features:
Material A356 Aluminum
Intake Port Volume 200cc
Intake seat size 2.02
Exhaust seat size 1.6
Intake Port Dimension 2.050" H x 1.250" W x 5/16 Radius
Intake Port Location Stock
Exhaust Port Volume 64cc
Exhaust Port Dimension 1.450" H x 1.550" W
Exhaust Port Location 0.100" Raised

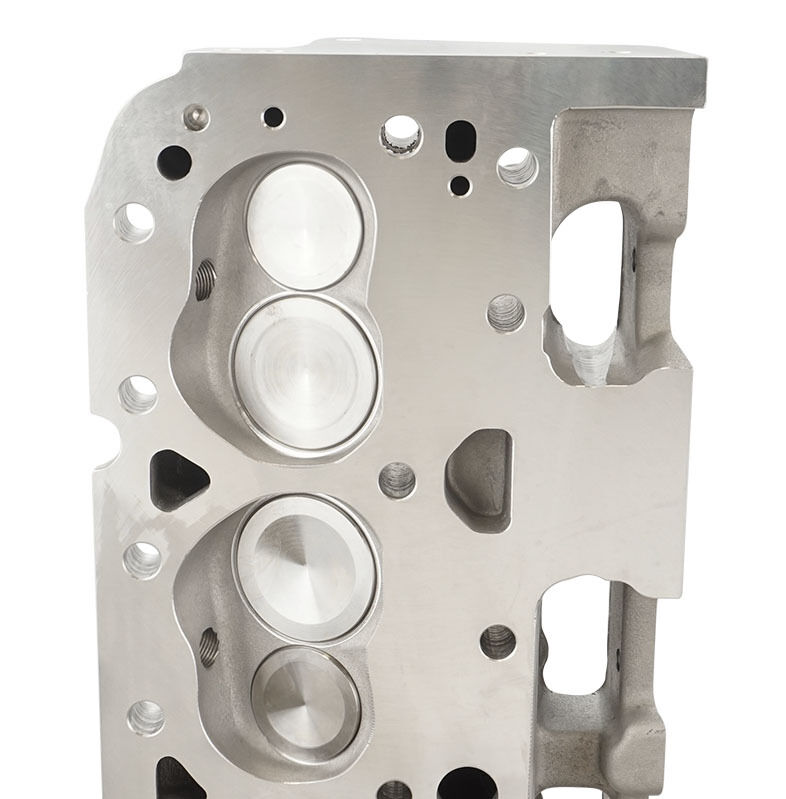

Combustion Chamber 65cc or 72cc
Valve Cover Bolt Pattern Perimeter Bolt
Valve Angle 23
Valve Spring Pocket Diameter 1.460" O.D
Max Valve Spring Pocket Machining 1.750" O.D
Warning: Do not machine spring pad any deeper.
Deck Thickness .750"
Minimum Bore Diameter 4.000"
Flat Mill .006" per cc 60cc Maximum
Angle Mill .009" per cc 55cc Maximum
Note: Angle mills might require .120 thick intake gasket.
Minimum Cross Sectional Area 1.810 sq. in.
Spark Plug Dimensions 14mm x .750" w/Gasket Seat
Spark Plug Position Angle Plug option

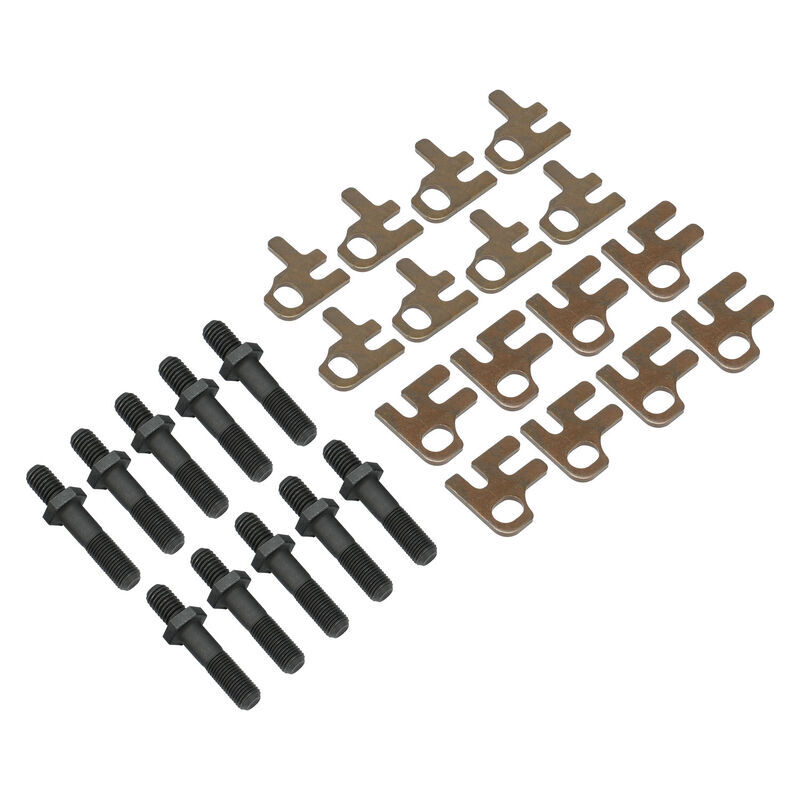

7/16 Studs Included 7/16
Adjustable GuidePlates Included 5/16
Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit MIC heads.
