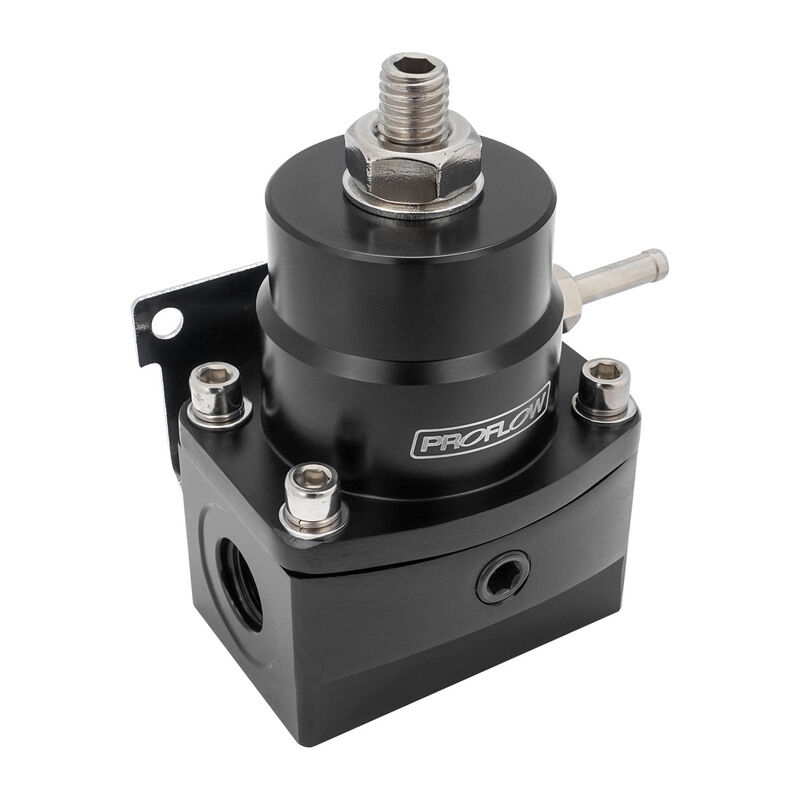

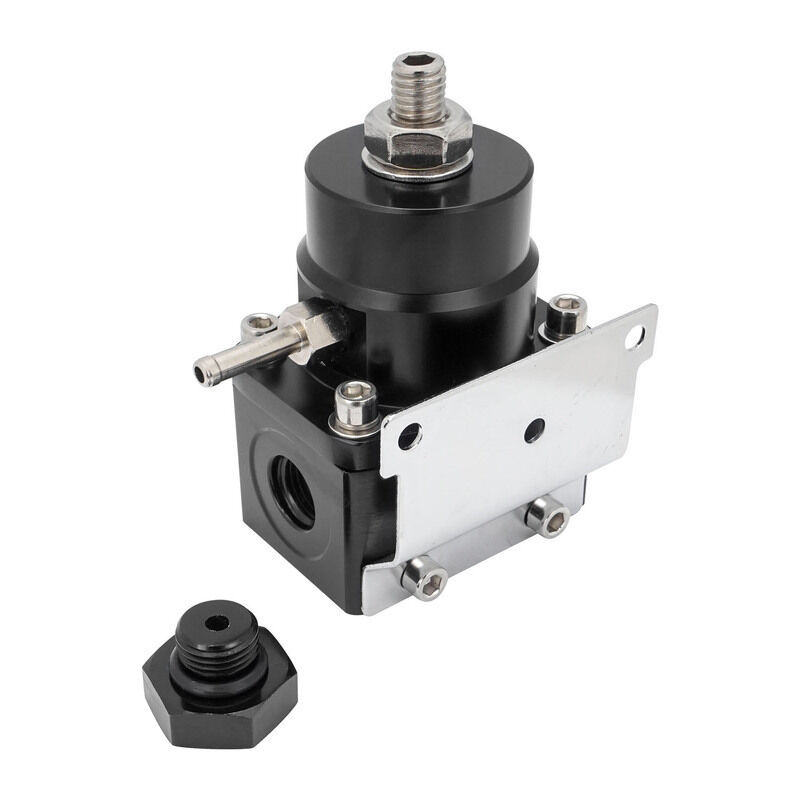

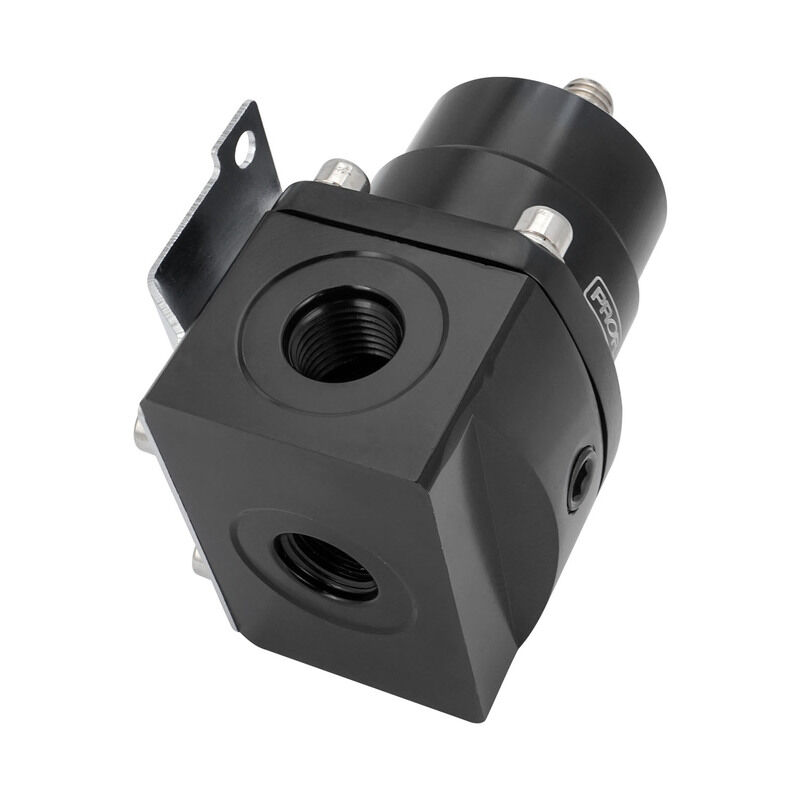

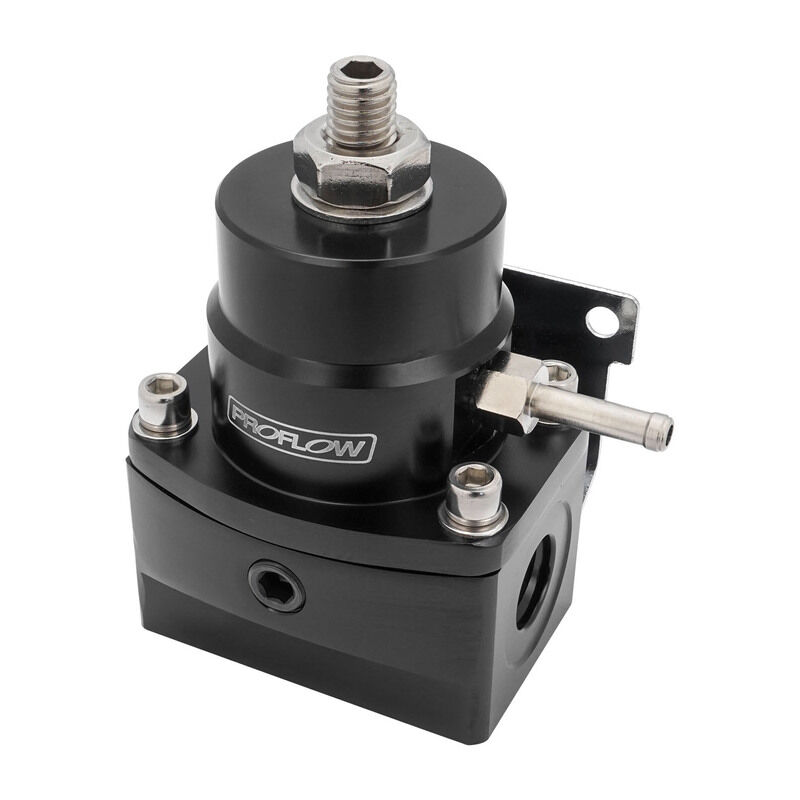

Proflow's return or bypass, Billet fuel pressure regulator provides serious bang for your buck. CNC-machined from lightweight billet aluminum, the internal spring and diaphragm are composed of high-quality materials to guarantee consistant and reliable performance. It is adjustable from 40-75 PSI, features a boost reference port, and is available in multiple finishes.

Specifications

Pressure Range 40 - 75 PSI
Regulator Style Return (Bypass)
Regulator Location Inline
Boost/Vacuum Port Yes
Boost/Vacuum Rise 1:1
Gauge Port Yes
Rebuildable Yes
Inlet Attachment Female
Inlet Size -6 AN O-Ring
Outlet Attachment Female
Outlet Size -6 AN O-Ring
Regulator Material Billet Aluminum
Mounting Bracket Included
