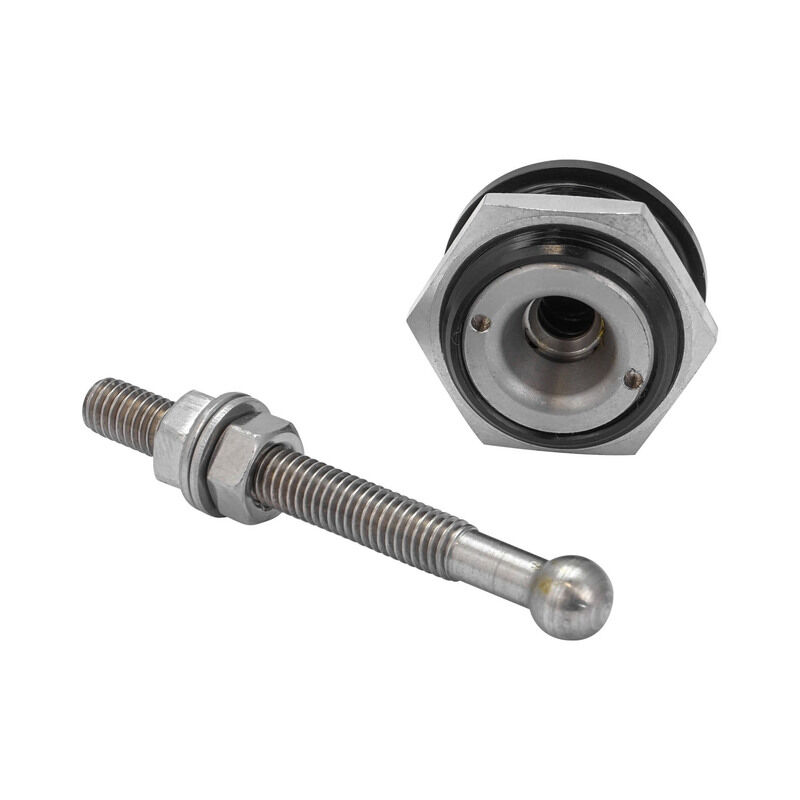

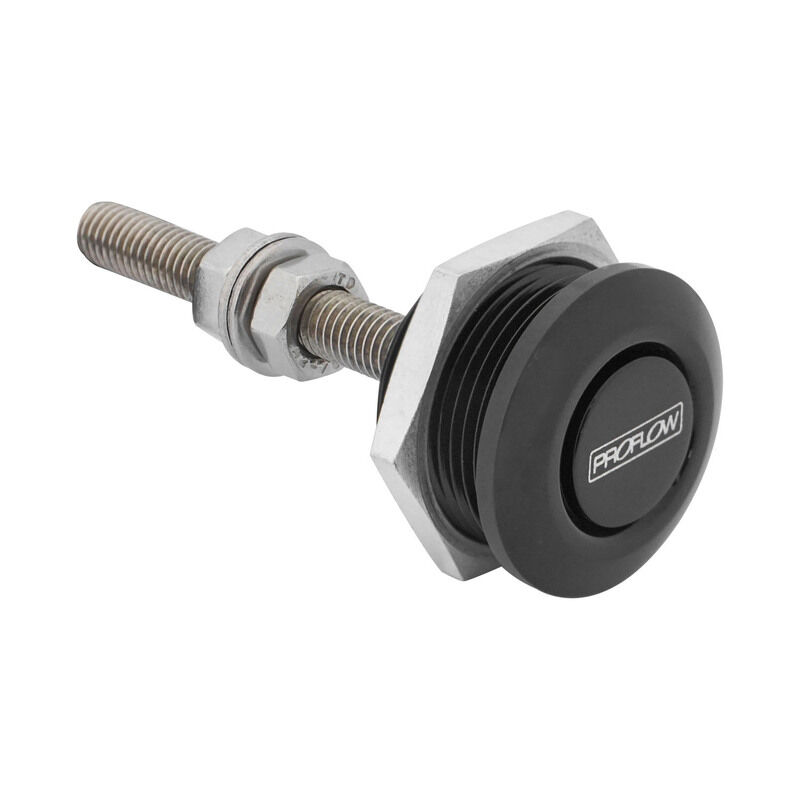

Say goodbye to Dzus clips and unsightly pins on your bonnet and panels. Proflow’s Pro-Latch universal latches offer a sleek, high-performance solution for securely fastening a wide range of applications. Engineered to withstand up to 90 kg of uniaxial force, their precision snap-lock design, crafted from premium stainless steel, ensures durability and strength. Each latch is machined from lightweight 6061-T6 billet aluminium, with a stainless steel locking mechanism for superior reliability. Available in a polished or hard black anodised finish, these versatile latches are perfect for bonnets, panels, or any component requiring easy release.

Specifications:

  • Body Material: 6061-T6 Billet Aluminium (hard anodised black or polished)
  • Latch Lock Material: SAE 304 Stainless Steel
  • Stud Material: SAE 304 Stainless Steel (A2-70)
  • Maximum Load: 50kg (approx. 500N vertical)

Note: The use of a secondary latch is required when using these latches on bonnets.

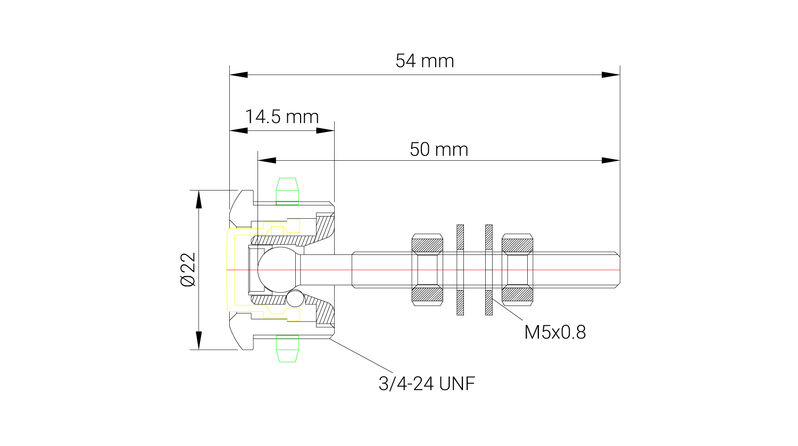

Proflow Quick Release Pro Latch 22mm Micro Fastener, Billet Aluminium, Black, Kit Diagram Image
