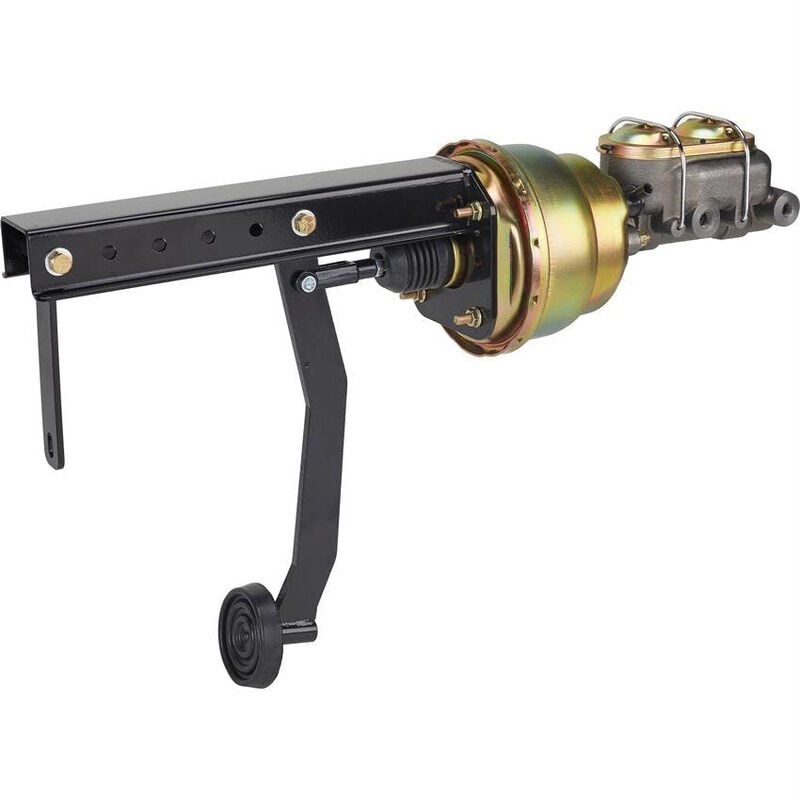

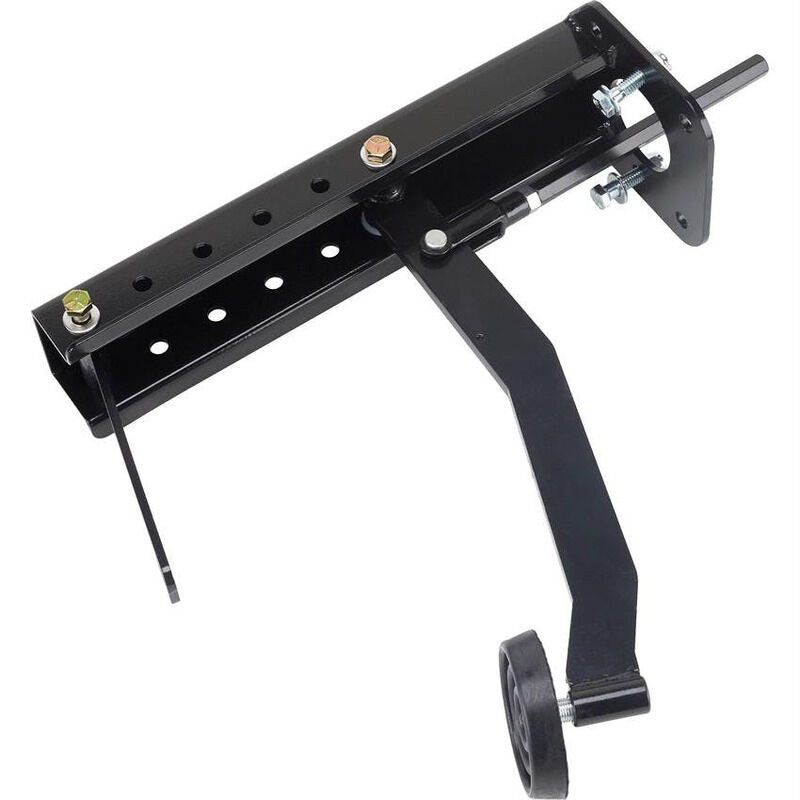

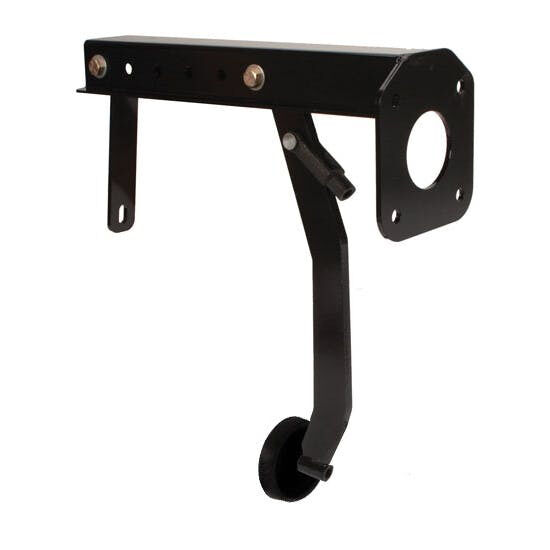

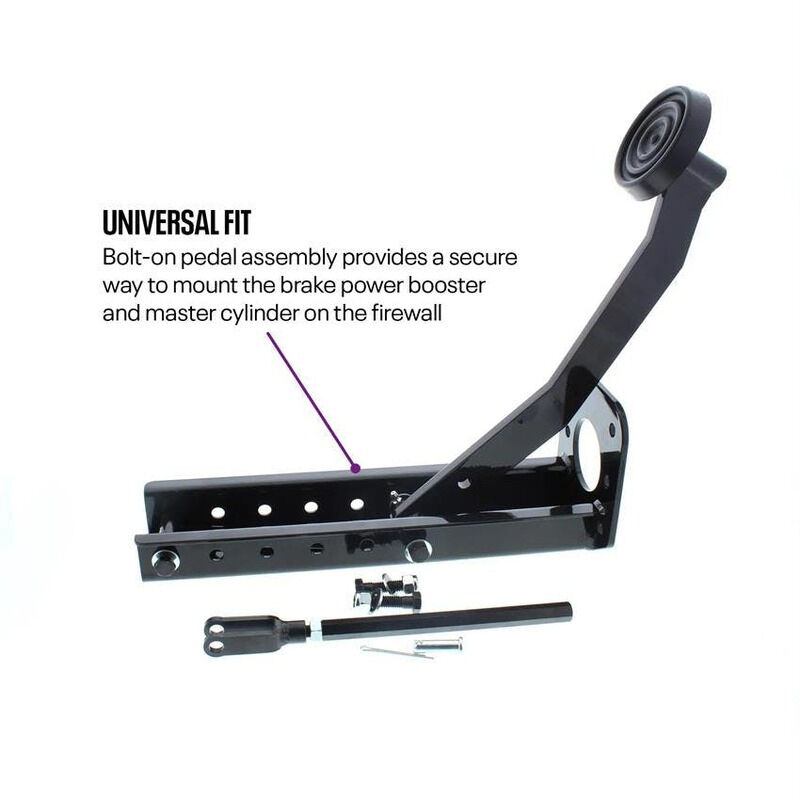

This universal bolt-on pedal assembly provides a secure way to mount the brake power booster and master cylinder on the firewall.

Proflow Universal Pedal bracket can be trimmed to fit your application and has holes to place pedal pivot point at 7", 8.5", 10", 11.5", or 13" from the firewall.

  • Mounts below dash
  • Sandwiches firewall between bracket and booster/master
  • Includes adjustable pushrod
  • This universal bolt-on pedal assembly provides a secure way to mount the brake power booster and master cylinder on the firewall
  • Pedal bracket can be trimmed to fit your application and has holes to place pedal pivot point at 7", 8.5", 10", 11.5", or 13" from the firewall
  • Perfect conversion kit for cars or trucks that originally had the master cylinder mounted under the floor
  • Compatible with common 3-3/8" x 3-3/8" square bolt pattern brake boosters
  • 3/8"-24 thread clevis and pushrod included to simplify installation
