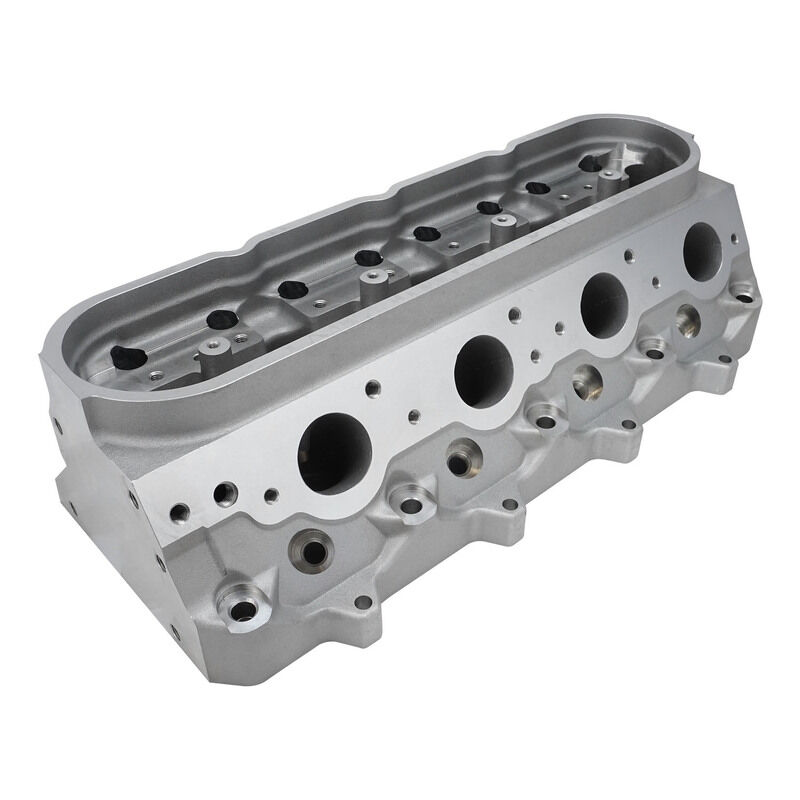

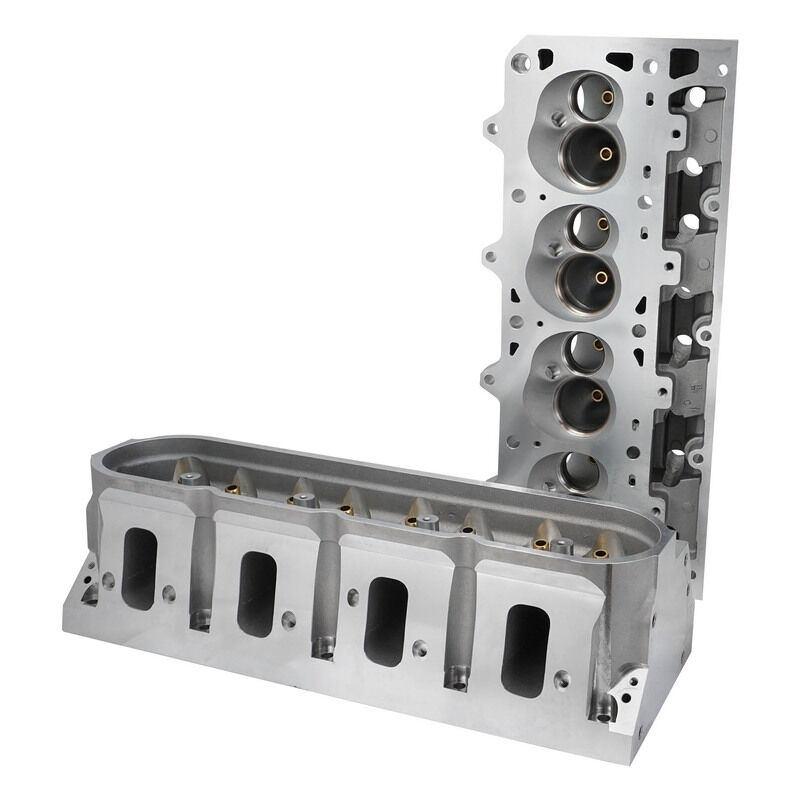

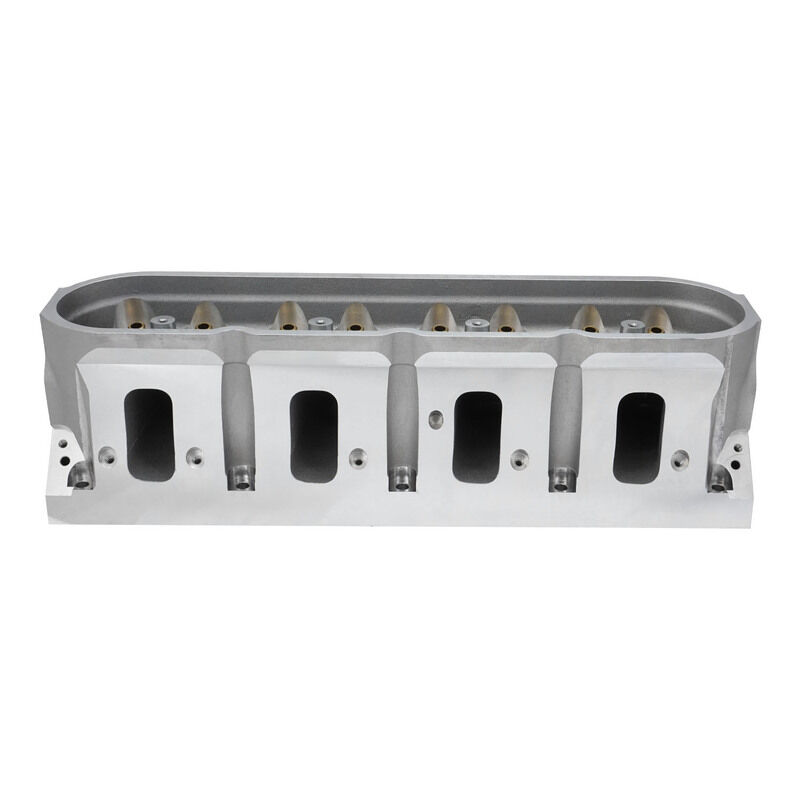

Proflow does not sacrifice quality for a low price- you get both with our aluminium cylinder heads. Our LS3 cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Cast from A356 aluminium, these 15 LS3 rectangle port heads are designed to fit LS series engines with a 4.00" or larger bore. These bare 275cc heads accept 2.165" diameter intake valves and 1.60" exhaust valves and have a 0.625" deck thickness. Suits 6-bolt standard or LSX block designs.

SPECIFICATIONS

Combustion Chamber 70 cc
Intake Port Volume 260 cc
Intake Port Dimensions 2.62” (H) x 1.31” (W)
Exhaust Port Volume 104 cc
Exhaust Port Dimensions 1.70” (H) x 1.815” (W)
Spark Plug Location OEM
Intake Valve Diameter 2.165”
Exhaust Valve Diameter 1.60”
Valve Stem Diameter 8 mm
Valve Spring Pocket ID 1.64”
Valve Guide OD 0.502” (0.560” at base)
Maximum Valve Lift 0.750”
Rocker Stud Thread Size OE LS3 Style
Valve Angle 11
Deck Thickness 0.750”
