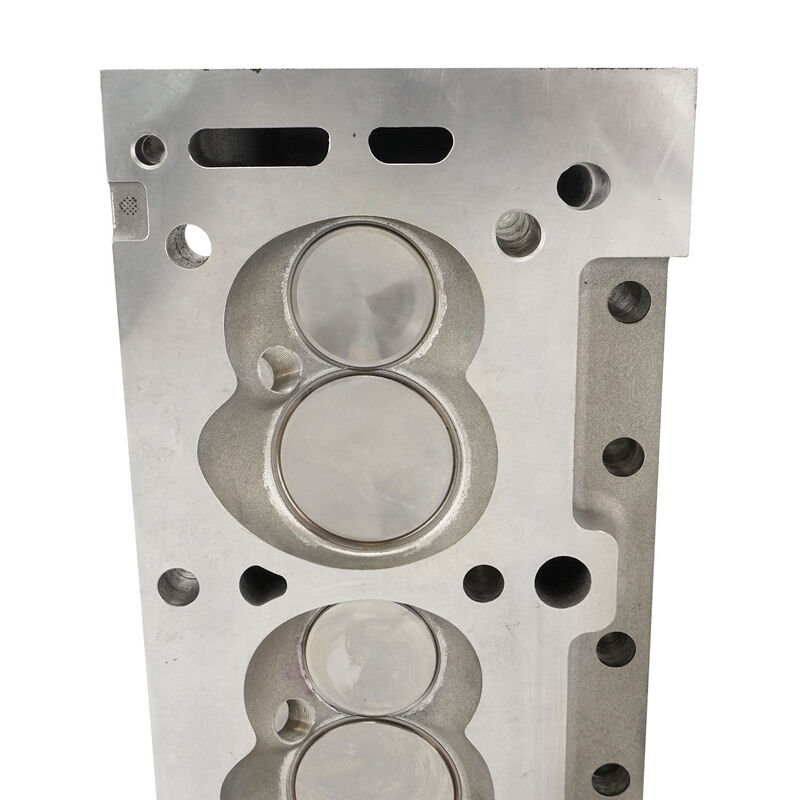

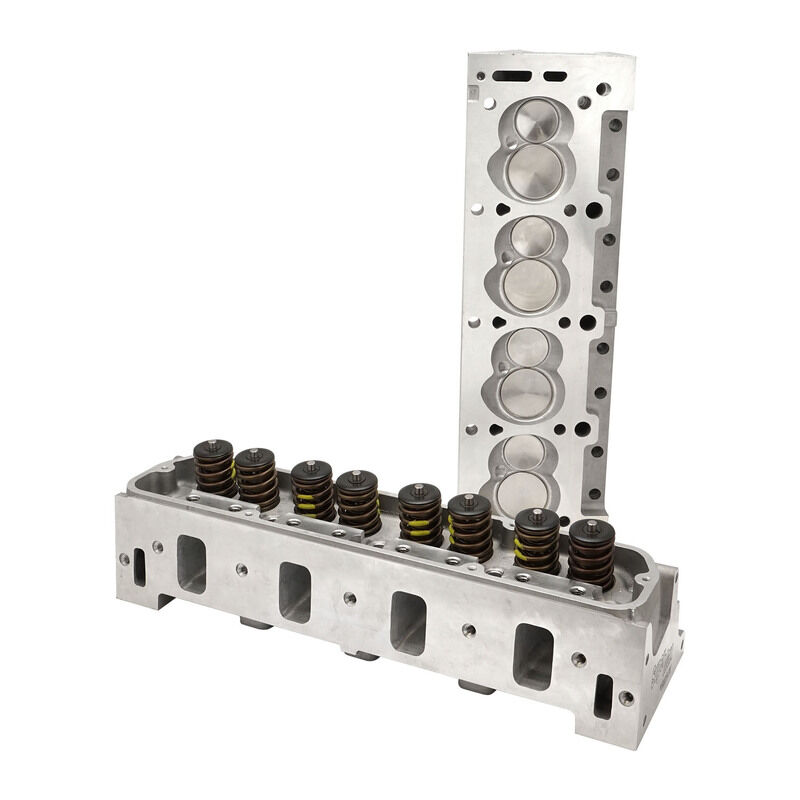

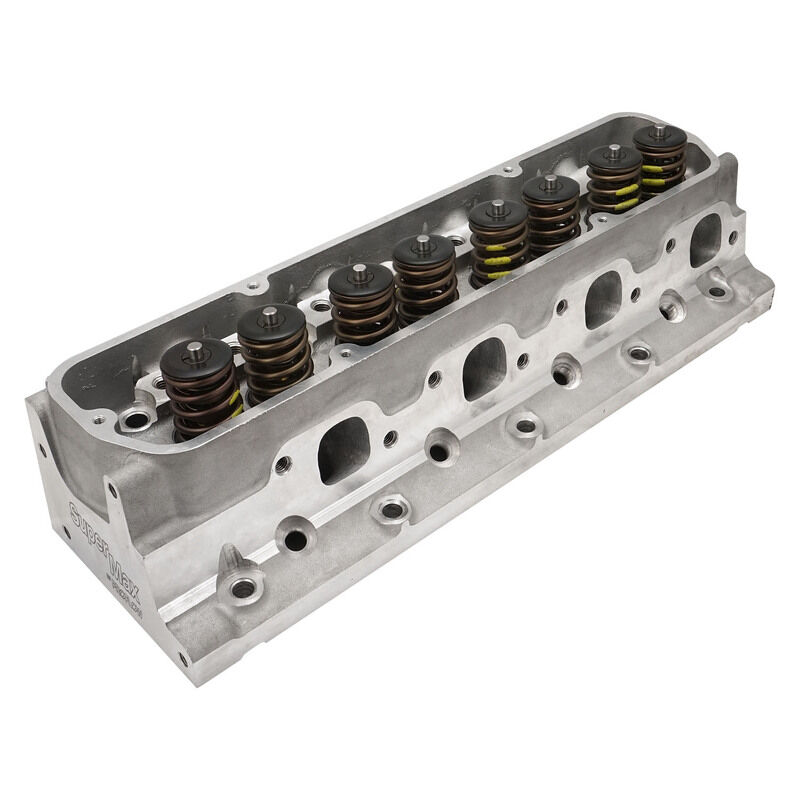

Proflow Holden Commodore VN SuperMax Aluminium Heads Complete

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. These fully assembled heads have stainless steel valves and high performance valve springs. Perfect for your Mild or High performance Hot Rod.

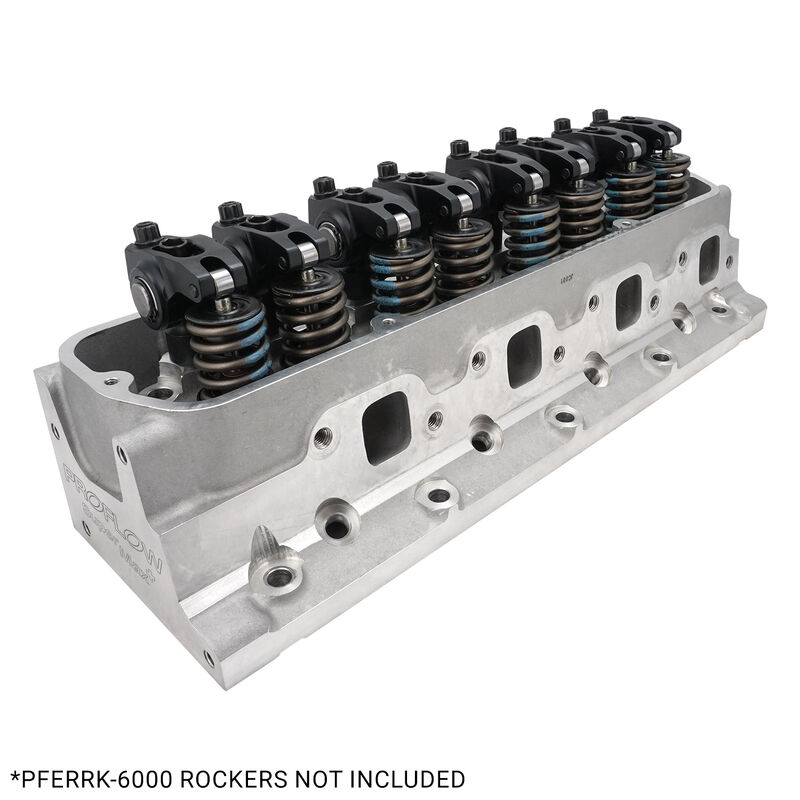

Use Proflow Aluminium Rocker kit # PFERRK-6000

SPECIFICATIONS

Combustion Chamber 64 cc
Intake Port Volume 200 cc
Intake Port Dimensions 2.170” (H) x 1.290” (W)
Exhaust Port Volume 72 cc
Exhaust Port Dimensions 1.440” (H) x 1.270” (W)
Spark Plug Location OEM
Intake Valve Diameter 2.020”
Exhaust Valve Diameter 1.60”
Valve Stem Diameter 8 mm
Valve Spring Pocket ID 1.650”
Valve Guide OD 0.530” (0.560" at base)
Maximum Valve Lift 0.550” (0.050" margin)
Rocker Stud Thread Size 7/16”-14
Valve Angle 3
Deck Thickness 0.790”
Coil Bind 1.205"
Installed Height (int.) 1.805" @ 118 lbs
Installed Height (exh.) 1.788" @ 123 lbs
Spring Rate 331 lbs/in.
