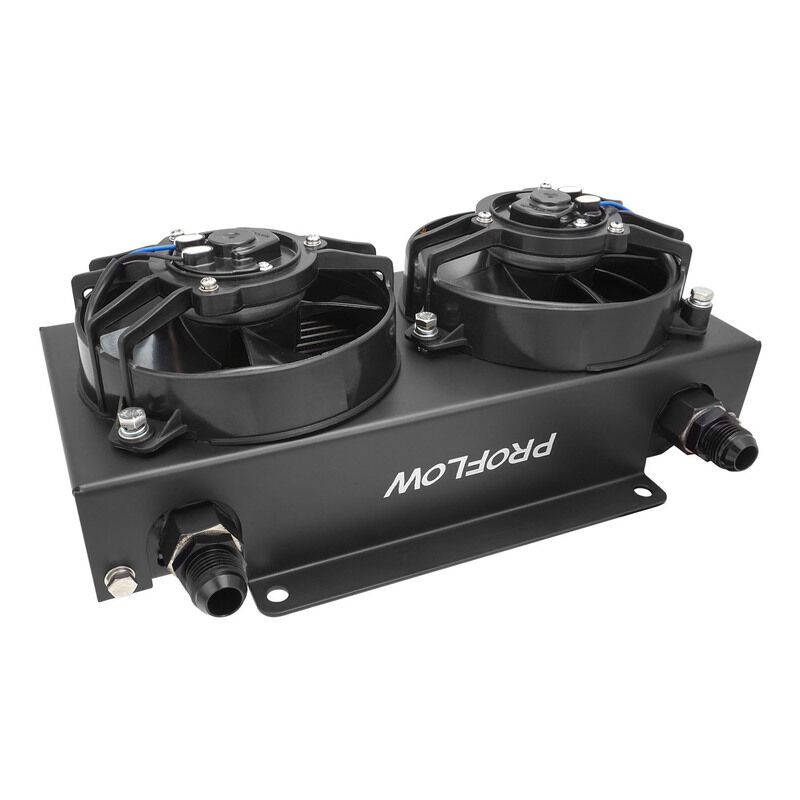

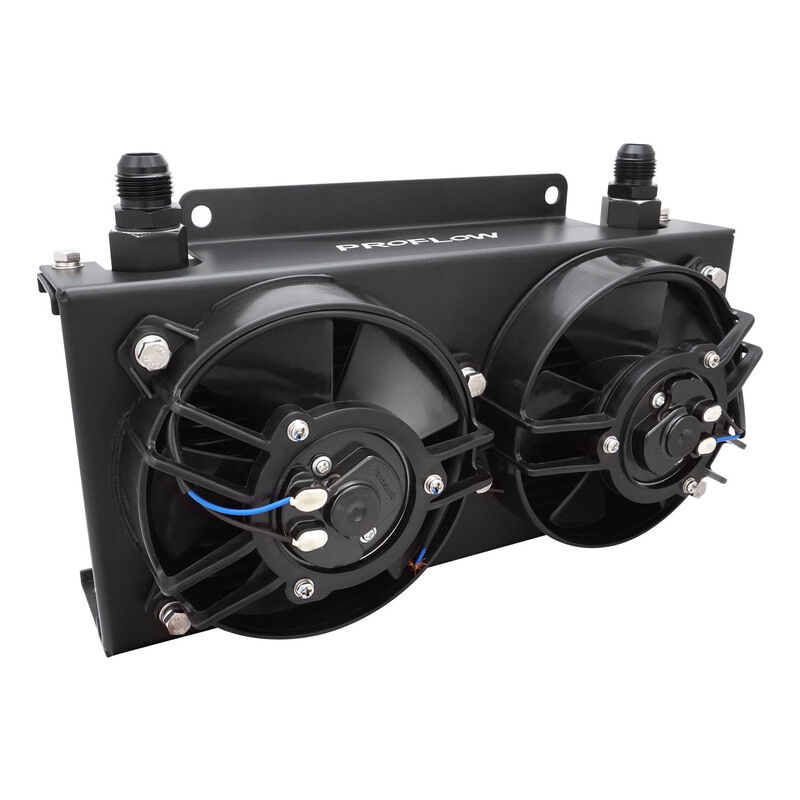

The Proflow Performance dual oil cooler allows you to mount your oil cooler virtually anywhere and away from the front of the vehicle, increasing airflow to the radiator. It features a 19-row stack-plate cooler design with integrated turbulators and airflow supplied by two 5” dustproof Panasonic electric fans. The black aluminium anodised fan shroud channels air flow towards the cooler, increasing efficiency, while also doubling as a mounting bracket. It can be mounted both vertically and horizontally, making it extremely easy to find a spot to mount on your car. -10AN female outlet ports are located at the top of the cooler with -10AN ORB straight fittings included, so you can screw hose ends of your choice directly onto the cooler. The oil cooler core has been pressure tested to a working pressure of 250 PSI.

  • Overall dimensions are 330 x 200 x 120mm including the mounting bracket and fans

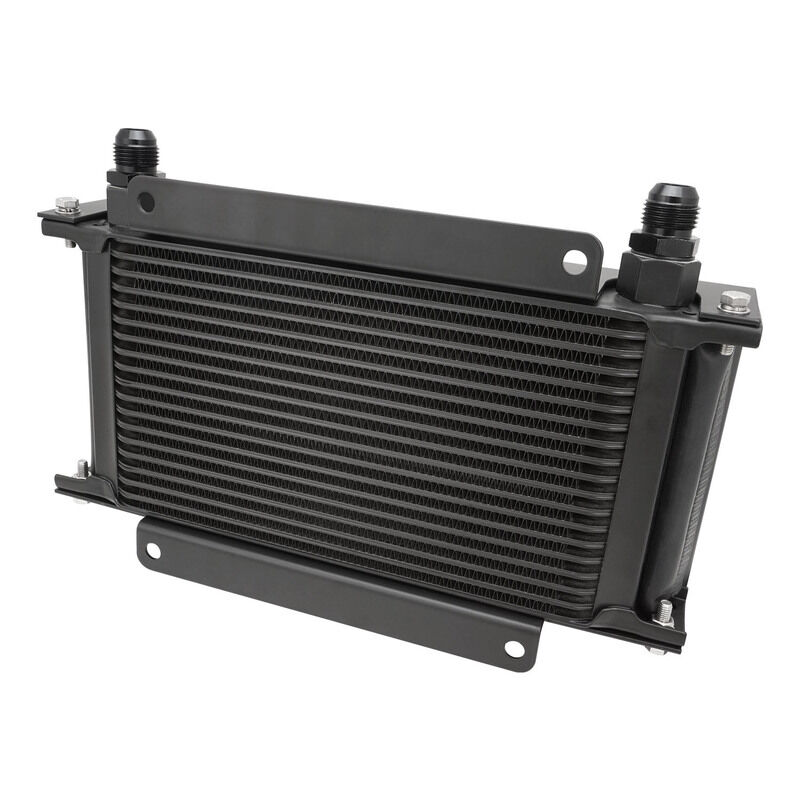

  • Oil cooler core dimensions are 280 x 145 x 50mm
  • Fans have a combined rating of 7 Amps
  • 625 CFM flow rating
  • 38,000 BTU's per hour
  • 1 year manufacturer's warranty
