Proflow’s Ford Falcon XR6 Turbo transmission oil cooler kit for the ZF 6-speed transmission contains all of the necessary items to get a transmission oil cooler plumbed up on your XR6 Turbo. The included oil cooler is Proflow's SuperMax (10” x 9.5” x 4”) 32mm thick remote cooler, which comes with a a tube and fin design and includes a 7” 350 CFM curved-blade fan that operates at a low 4.7 Amp current draw. An integrated mounting bracket is included on the cooler and also has provision for the included fan switch that activates the fan at an oil temperature of 80C (176F). This kit can be mounted vertically or horizontally towards the front behind the fog light or underneath the floor plan.

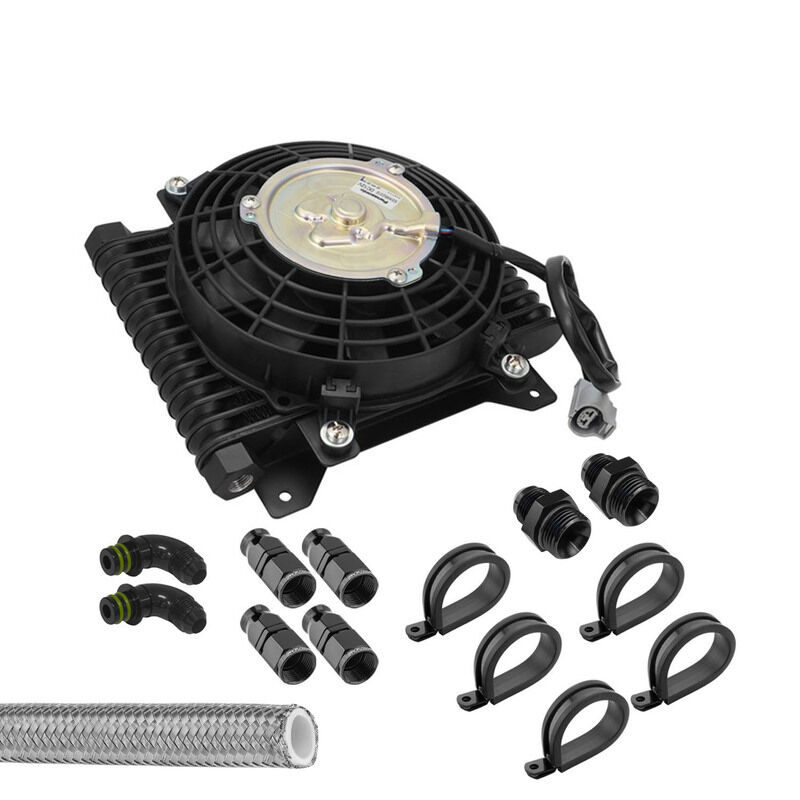

Kit Includes:

  • 10” x 9.5” x 4.0” SuperMax cooler with a 7.0" 350 CFM Panasonic fan
  • Dedicated fan activiation switch
  • 5m length of our PFE200-08 Series stainless steel PTFE hose
  • 2x ZF transmission fitting adaptors
  • 4x AN8 straight hose ends for PTFE hose
  • 2x AN10 to AN8 ORB Fittings
  • 5x Cushioned P-clamps
