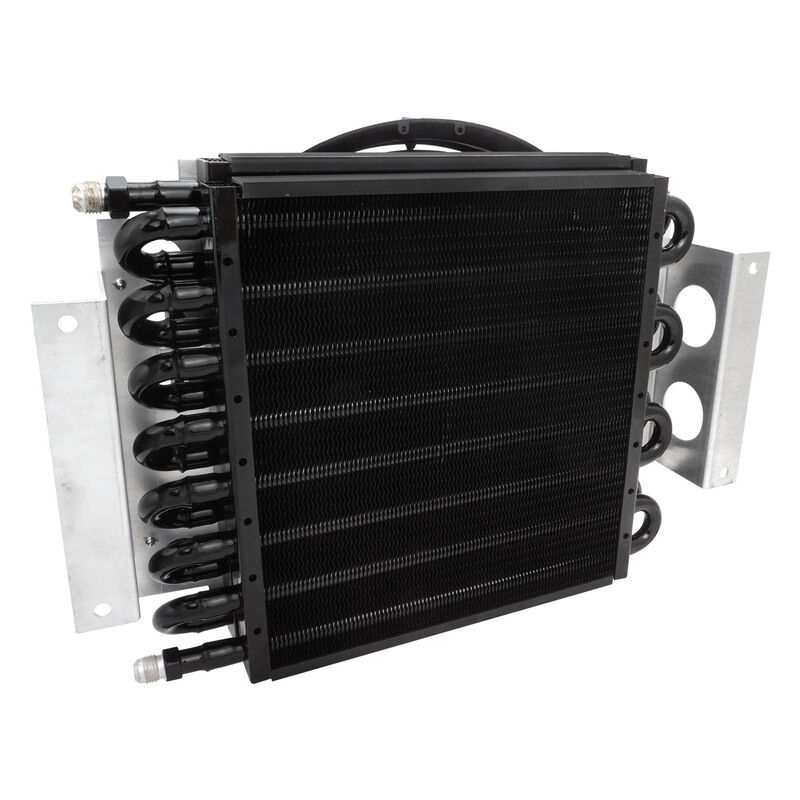

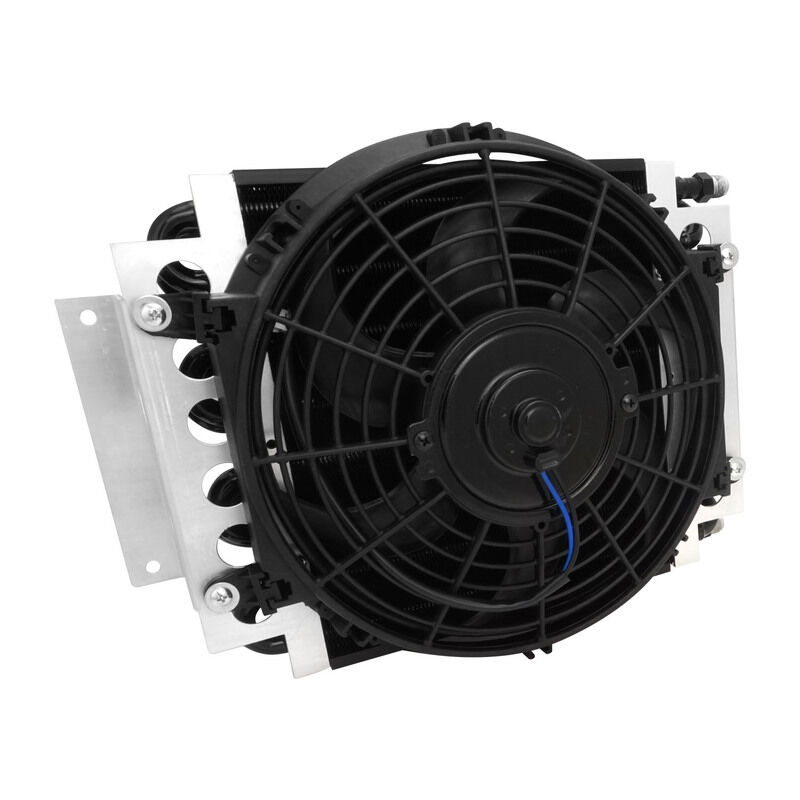

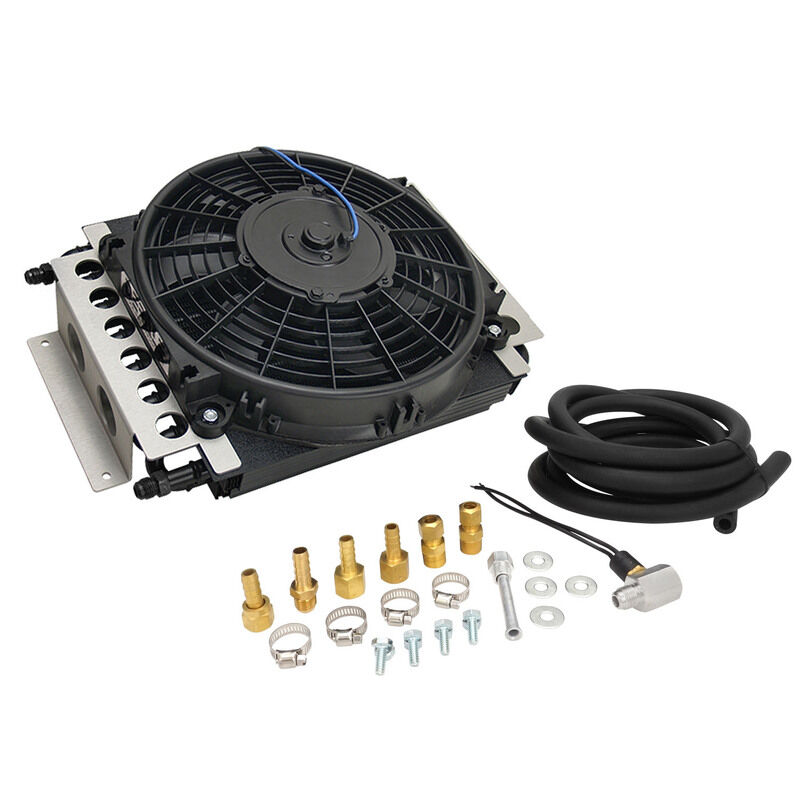

Proflow’s Ultra Cool dual core transmission oil cooler kit will help to increase your vehicle’s transmission life expectancy by significantly lowering operating temperatures. It has a large 38 mm thick powder coated dual core with an integrated mounting bracket and AN6 male connections. It also comes complete with a 650 CFM 10” curved-blade electric fan already mounted, so all you have to do is find a spot to mount it on your car! This kit also includes rubber hose, mounting accessories and a 74C relay switch for activating the fan.

Features:

  • 16 pass tube & fin core
  • 650 CFM reversible electric fan (5.3 Amp current draw)
  • Anodised aluminium shroud/bracket
  • Can be mounted vertically or horizontally
  • 250 PSI working pressure
  • Includes 74C in-line thermostat for fan activation

Specifications:

  • Inlet size: -06AN
  • Fan size: 10"
  • CFM: 650
  • Amp draw: 5.3 A
  • Width: 15-3/4"
  • Height: 11-1/2"
  • Depth: 5"
  • Mounting: 14-3/4" x 5-1/4"
  • Hose size: 3/8"
  • Hose length: 10'

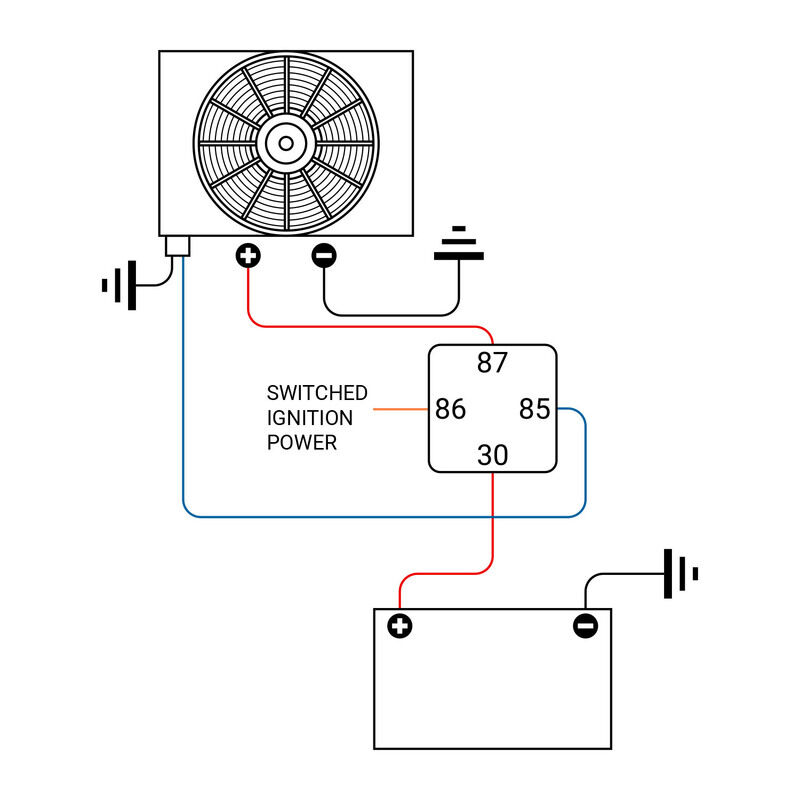

Proflow Transmission Cooler Kit, Dual Core, 15.75'' x 11.5'' x 5.0'', 10'' 650CFM Fan, AN6 Inlets Diagram Image
