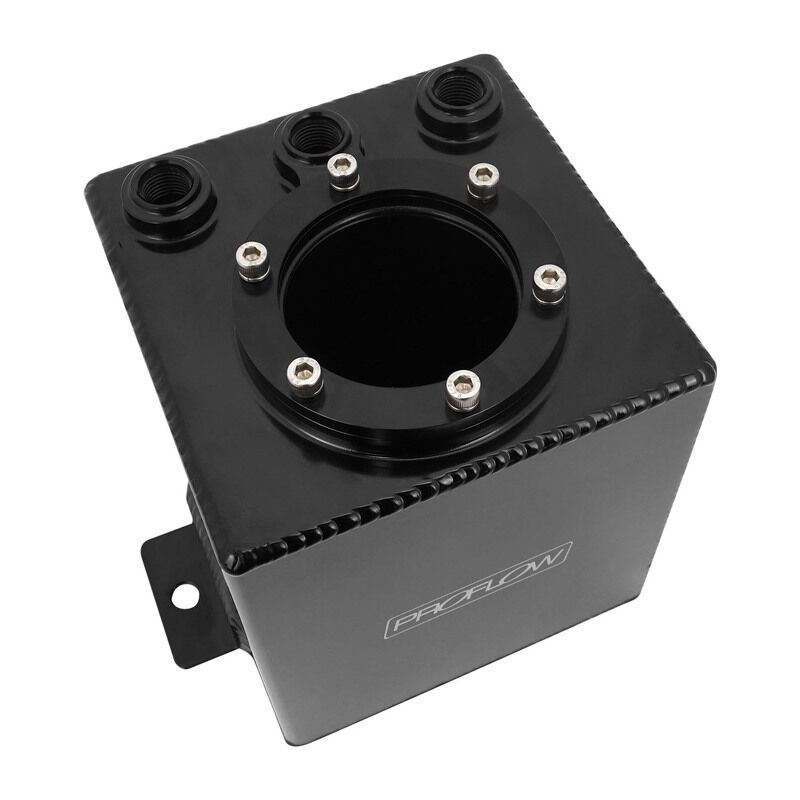

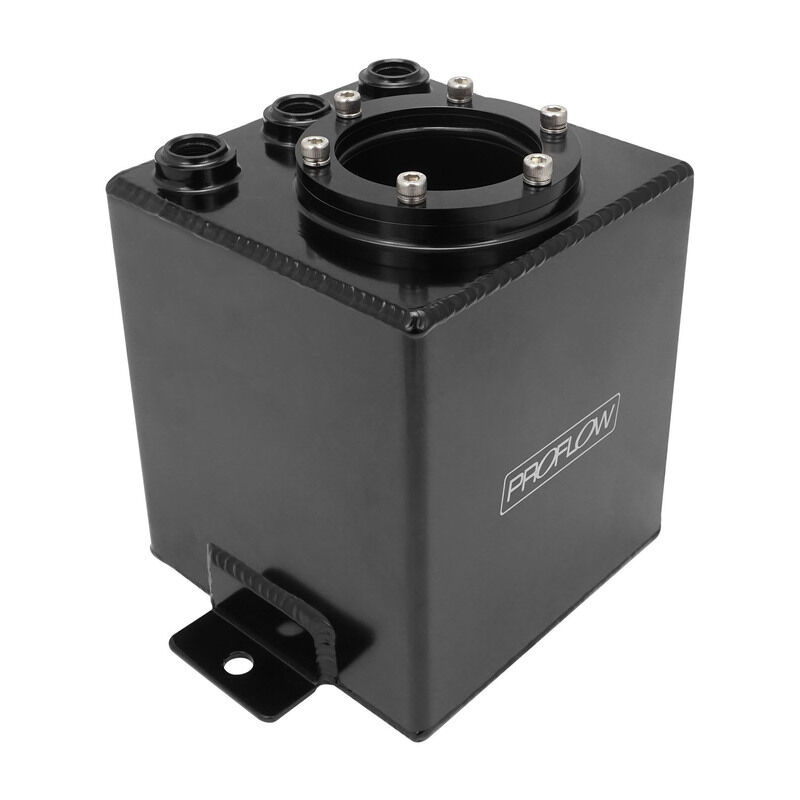

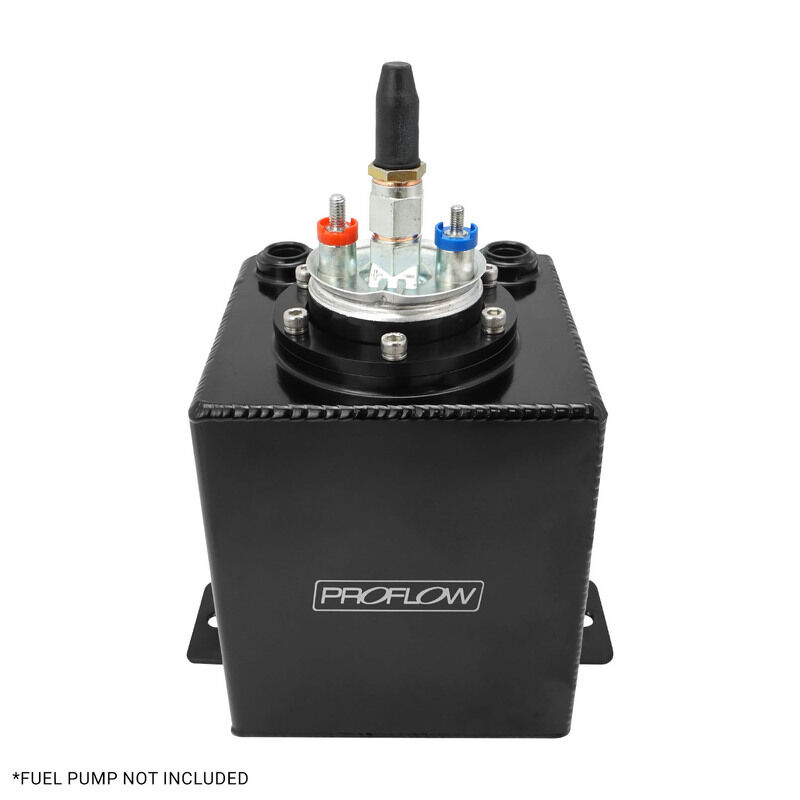

This Proflow single pump surge tank allows you to drop an 044 Bosch style fuel pump into a surge tank setup. Simply remove the 6x screws holding the pump clamp, drop in your 044 fuel pump and re-attach the clamp to the tank - and your ready to go. The top plate is CNC-machined from 6061-T6 billet aluminium and welded to a 3mm thick aluminium tank. It comes with 3x AN6 ORB ports to run your feed, return and overflow lines and is black anodised for durability.

  • Tank dimensions = 150H x 132W x 132L mm (175mm overall height)
  • Suits all 60mm Bosch Style 044 fuel pumps (PFEFS11380, PFEFS11300)
  • 2.5L Volume
  • 3x AN6 ORB Ports
  • Integrated mounting brackets
  • Includes Viton o-ring to seal the pump and tank
